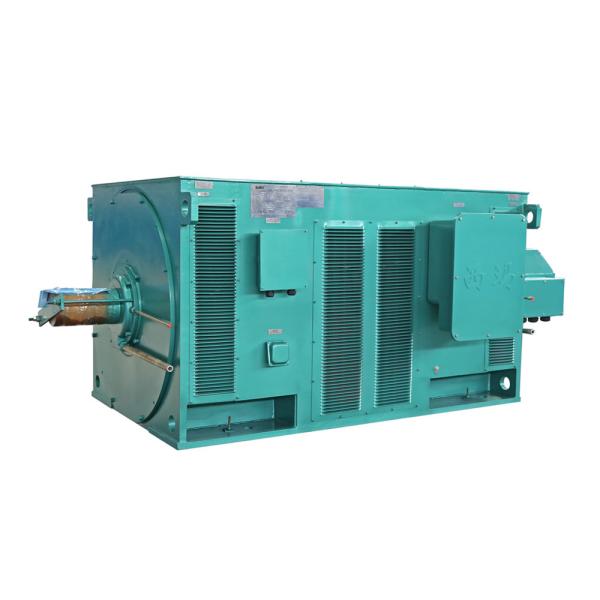

Simo YR Series 8003-4 6300kW HV Electric Motor 1494RPM 722.8A

    Buy cheap Simo YR Series 8003-4 6300kW HV Electric Motor 1494RPM 722.8A from wholesalers

    Buy cheap Simo YR Series 8003-4 6300kW HV Electric Motor 1494RPM 722.8A from wholesalers
    • Buy cheap Simo YR Series 8003-4 6300kW HV Electric Motor 1494RPM 722.8A from wholesalers

    Simo YR Series 8003-4 6300kW HV Electric Motor 1494RPM 722.8A

    Ask Lasest Price
    Brand Name : Simo Motor
    Model Number : YR Series HV Three-phase Asynchronous Motor
    Certification : 3C, CE, GOST, CNAS, UL, QMS, EMS
    Payment Terms : T/T
    Delivery Time : 50-60 Working Days
    • Product Details
    • Company Profile

    Simo YR Series 8003-4 6300kW HV Electric Motor 1494RPM 722.8A

    YR-8003-4-6300kW-6kV-IP54-Class F-IM B3 HV Three-phase Asynchronous Motor


    Motor Parameters


    Type:YR8003-4-6300kW-6kV-IP54-Class F-IM B3 HV Three-phase Asynchronous Motor
    Rated Power6300Power Factor0.87
    Rated Current722.8Max. Torque/Rated Torque1.8
    Rated Speed1494Weight
    Efficiency96.4

    Technical Advantages

    YR-8003-4-6300kW-6kV-IP54-Class F-IM B3 HV Three-phase Asynchronous Motor has characteristics of 6300 kW of rated power, 722.8 A of rated current, 1494 r/min of speed,96.4 % of efficiency, 0.87 Cos φof power factor. Its Max. torque/ rated torque is 1.8 kg.


    This series of high and low voltage three-phase asynchronous motor is a new generation product based on the company's long-term stable high-voltage three-phase asynchronous motor’s experience of design and manufacturing, combined with the latest international standards. The efficiency values of motor averagely arrive at efficiency limit value of grade 2, which can largely promote the operation efficiency of customer.


    Along with the progress of technology and revisions of relevant national standards, dimensions and technical data of instructions might be changed without prior notice. Please refer to the provided dimensions outline drawing.


    Product Features

    This series of motor has advantages of high-efficiency, energy-saving, low noise and vibration, light weight, performance reliability, convenient installation and maintenance.


    Operation Conditions

    Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).


    Wide Application

    This series of motor is applied in all kinds of different machineries, such as air ventilators, compressors, water pumps, crushers, cutting machines and other equipments, and it can be also regarded as prime motor among coal mine, machinery industry, power plant and other kinds of industries and mining enterprises.


    Profile Display

    Our Advantages

    We are a developing and manufacturing enterprise specialized in large and medium, high and low voltage, AC and DC motors, synchronous motors, high efficiency motors and explosion-proof motors; a power system supplier intergrated motor design and manufacturing, mechanical processing, model manufacturing and automatic complete engineering. Our products mainly apply in electric power, coal, petroleum, mining exploring, metallurgy, railways, transportation, chemistry, agriculture, hydraulic power, navigation and high-tech areas, which is the motor supporting manufacturer specially designated by the Ministry of Railways.


    Service Expanded

    We proposed the service concept of "Customization" in accordance with the actual needs of customers in case of any special requirements. you can put forward special requirements and we will design an exclusive scheme as per your requirements. contact us of specific design and price.


    Available Types of YR


    TypeRated PowerRated CurrentRated SpeedEfficiencyPower Factor

    Max. Torque

    Rated Torque

    Mass
    kWAr/min%cosφkg
    YR7102-43150366.8149496.10.861.8
    YR7103-43550413.3149496.10.861.8
    YR7104-44000465.2149496.20.861.8
    YR7105-44500523.4149496.20.861.8
    YR7106-45000574.3149496.30.871.8
    YR8001-45000574.9149496.20.871.8
    YR8002-45600643.2149496.30.871.8
    YR8003-46300722.8149496.40.871.8
    YR8004-47100813.8149496.50.871.8
    YR7101-62240264.799595.80.851.8
    YR7102-62500295.199595.90.851.8
    YR7103-62800330.299596.00.851.8
    YR7104-63150366.899596.10.861.8
    YR7105-63550412.999596.20.861.8
    YR7106-64000464.899596.30.861.8
    YR8001-63550413.399596.10.861.8
    YR8002-64000465.299596.20.861.8
    YR8003-64500523.499596.20.861.8
    YR8004-65000580.999596.30.861.8
    YR8005-65600650.099596.40.861.8
    YR7101-81800215.774595.60.841.8
    YR7102-82000239.474595.70.841.8
    YR7103-82240267.874595.80.841.8
    YR7104-82500298.674595.90.841.8
    YR7105-82800334.174596.00.841.8
    YR8001-82500298.974595.80.841.8
    YR8002-82800334.574595.90.841.8
    YR8003-83150371.874595.90.851.8
    YR8004-83550418.674596.00.851.8
    YR8005-84000471.274596.10.851.8
    YR9001-84000471.774596.00.851.8
    YR9002-84500530.174596.10.851.8
    YR9003-85000588.474596.20.851.8
    YR9004-85600659.074596.20.851.8
    YR7101-101600194.459595.40.831.8
    YR7102-101800218.559595.50.831.8
    YR7103-102000242.559595.60.831.8
    YR7104-102240271.459595.70.831.8
    YR8001-102240271.659595.60.831.8
    YR8002-102500302.959595.70.831.8
    YR8003-102800338.859595.80.831.8
    YR8004-103150380.859595.90.831.8
    YR9001-103150381.259595.80.831.8
    YR9002-103550429.259595.90.831.8
    YR9003-104000483.159596.00.831.8
    YR9004-104500543.459596.00.831.8
    YR9005-105000603.259596.10.831.8
    YR10001-105000603.859596.00.831.8
    YR10002-105600676.359596.00.831.8
    YR10003-106300760.059596.10.831.8
    YR10004-107100856.559596.10.831.8
    YR10005-108000964.159596.20.831.8
    YR7101-121120136.849594.90.831.8
    YR7102-121250152.549595.00.831.8
    YR7103-121400170.749595.10.831.8
    YR7104-121600194.849595.20.831.8
    YR7105-121800219.049595.30.831.8
    YR8001-121600195.149595.10.831.8
    YR8002-121800219.249595.20.831.8
    YR8003-122000243.349595.30.831.8
    YR8004-122240272.249595.40.831.8
    YR8005-122500303.249595.60.831.8
    YR9001-122500303.549595.50.831.8
    YR9002-122800339.649595.60.831.8
    YR9003-123150381.649595.70.831.8
    YR9004-123550429.649595.80.831.8
    YR10001-123550430.149595.70.831.8
    YR10002-124000484.149595.80.831.8
    YR10003-124500544.649595.80.831.8
    YR10004-125000604.549595.90.831.8
    YR10005-125600677.049595.90.831.8
    YR7101-1663086.037194.00.751.8
    YR7102-1671096.837194.10.751.8
    YR7103-16800108.837194.30.751.8
    YR7104-16900120.737194.40.761.8
    YR7105-161000133.837194.60.761.8
    YR7106-161120149.737194.70.761.8
    YR8001-161000132.237194.50.771.8
    YR8002-161120148.037194.60.771.8
    YR8003-161250165.037194.70.771.8
    YR8004-161400184.637194.80.771.8
    YR8005-161600210.737194.90.771.8
    YR9001-161600210.937194.80.771.8
    YR9002-161800237.037194.90.771.8
    YR9003-162000263.137195.00.771.8
    YR9004-162240294.437195.10.771.8
    YR9005-162500324.037195.20.781.8
    YR10001-162240290.937195.00.781.8
    YR10002-162500324.337195.10.781.8
    YR10003-162800362.837195.20.781.8
    YR10004-163150407.837195.30.781.8
    YR10005-163550459.137195.40.781.8
    YR10006-164000516.737195.50.781.8
