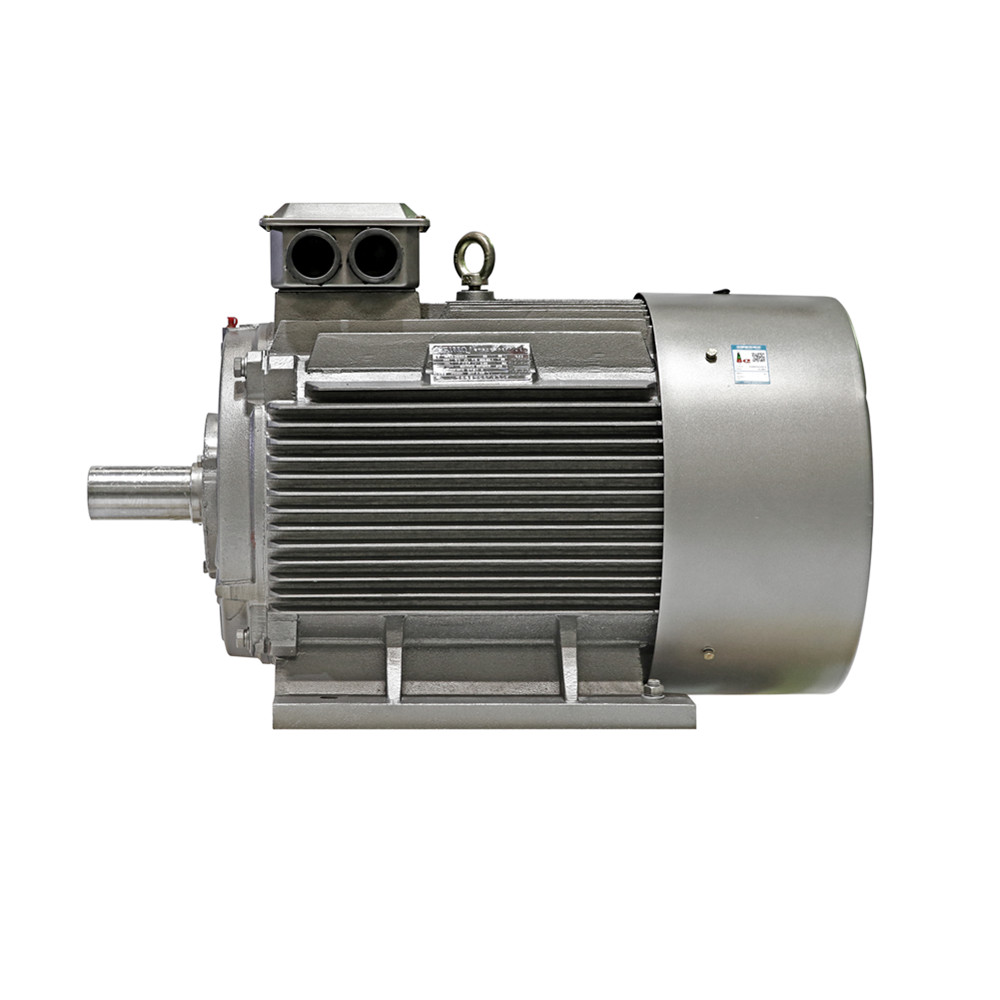

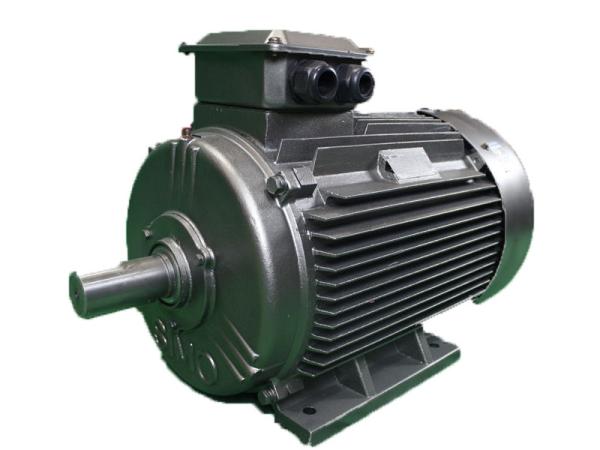

YE4 80M1-2 0.75KW LV Three Phase Asynchronous Motor IC411 Cooling

    Buy cheap YE4 80M1-2 0.75KW LV Three Phase Asynchronous Motor IC411 Cooling from wholesalers

    Buy cheap YE4 80M1-2 0.75KW LV Three Phase Asynchronous Motor IC411 Cooling from wholesalers
    • Buy cheap YE4 80M1-2 0.75KW LV Three Phase Asynchronous Motor IC411 Cooling from wholesalers

    YE4 80M1-2 0.75KW LV Three Phase Asynchronous Motor IC411 Cooling

    Ask Lasest Price
    Brand Name : Simo Motor
    Model Number : YE4 Series High Efficiency and LV Three-phase Asynchronous Motor
    Certification : 3C,CE,GOST,CNAS,UL,QMS,EMS
    Payment Terms : T/T
    Delivery Time : 50-60 Working Days
    • Product Details
    • Company Profile

    YE4 80M1-2 0.75KW LV Three Phase Asynchronous Motor IC411 Cooling

    YE4-80M1-2-0.75-380V-IP55-Class F-IM B3 High Efficiency and LV Three-phase Asynchronous Motor


    Motor Parameters


    Type:YE4-80M1-2-0.75-380V-IP55-Class F-IM B3 High Efficiency and LV Three-phase Asynchronous Motor
    Rated Power0.75Locked Torque/Rated Torque8.5
    Rated Current1.6Max. Torque/Rated Torque2.3
    Speed2880Rated Torque2.4
    Efficiency83.5Rotational Inertia
    Power Factor0.83No-load Noise62
    Locked Torque/Rated Torque2.2Weight

    Technical Advantages

    YE4-80M1-2-0.75-380V-IP55-Class F-IM B3 High Efficiency and LV Three-phase Asynchronous Motor has characteristics of 0.75 kW of rated power, 1.6 A of rated current, 2880 r/min of speed, 83.5 % of efficiency, 0.83 Cos φ of power factor. Its locked torque/ rated torque is 2.2, locked current/ rated current is 8.5, Max. torque/ rated torque is 2.3, rated torque is 2.4 and no-load noise is 62.


    This series of high efficiency three phase asynchronous motor is totally enclosed self-ventilated squirrel-cage three phase asynchronous motor manufactured by our company. Motor housing generally adopts high-strengthen gray iron, and coil adopts fine anti-corrosive cooper wire.


    Product Features

    This series of motor has the advantages of excellent performance, high efficiency, energy-saving, large temperature rise margin, long life, low vibration, excellent starting performance, good-looking appearance and high reliability.


    Operation Conditions

    Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).


    Wide Application

    This series of motor is commonly used to drive water pumps, fans, compressors, conveyors and other transmission machinery in energy conservation and environmental protection transformation projects, national water conservancy projects, etc.


    Profile Display

    Our Advantages

    We are a developing and manufacturing enterprise specialized in large and medium, high and low voltage, AC and DC motors, synchronous motors, high efficiency motors and explosion-proof motors; a power system supplier intergrated motor design and manufacturing, mechanical processing, model manufacturing and automatic complete engineering. Our products mainly apply in electric power, coal, petroleum, mining exploring, metallurgy, railways, transportation, chemistry, agriculture, hydraulic power, navigation and high-tech areas, which is the motor supporting manufacturer specially designated by the Ministry of Railways.


    Service Expanded

    We proposed the service concept of "Customization" in accordance with the actual needs of customers in case of any special requirements. you can put forward special requirements and we will design an exclusive scheme as per your requirements. contact us of specific design and price.


    Type


    Rated Power

    kW


    Rated Current

    A


    Speed

    r/min


    Efficiency

    %


    Power Factor

    Cosφ

    Locked torque

    Locked

    current

    Max. torque


    Rated

    Torque

    N•m


    Moment of Inertia

    kg•m2


    No-Load Noise

    dB(A)


    Weight

    Kg

    Rated

    Torque

    Rated

    Current

    Rated Torque

    Synchronous Speed 3000r/min
    YE4-80M1-20.751.6288083.50.832.28.52.32.4--62--
    YE4-80M2-21.13.5288085.20.832.28.52.33.5--62--
    YE4-90S-21.53.1289086.50.852.29.02.34.8--67--
    YE4-90L-22.24.4289088.00.862.29.02.37.0--67--
    YE4-100L-235.9291089.10.872.29.52.39.6--74--
    YE4-112M-247.7291090.00.882.29.52.312.8--77--
    YE4-132S1-25.510.4294590.90.882.09.52.317.50.027975
    YE4-132S2-27.514.0294091.70.892.09.52.323.90.037981
    YE4-160M1-21120.3295092.60.892.09.52.335.00.0681136
    YE4-160M2-21527.4295093.30.892.09.52.347.80.0881149
    YE4-160L-218.534.2295093.70.892.09.52.358.90.0981168
    YE4-180M-22240.0296594.00.892.09.52.370.00.1383208
    YE4-200L1-23054.2297094.50.892.09.02.395.50.2284272
    YE4-200L2-23766.6297594.80.892.09.02.3117.80.2684284
    YE4-225M-24580.9297595.00.892.09.02.3143.30.3486342
    YE4-250M-25598.5298095.30.892.09.02.3175.10.7689496
    YE4-280S-275133.8298095.60.891.88.52.3238.80.9291580
    YE4-280M-290160.4298095.80.891.88.52.3286.51.1191667
    YE4-315S-2110195.6297596.00.891.88.52.3350.21.5892941
    YE4-315M-2132234.2297596.20.891.88.52.3420.21.7892965
    YE4-315L1-2160283.6297596.30.891.88.52.2509.32.04921038
    YE4-315L-2185327.6297596.40.891.88.52.2588.92.2792985
    YE4-315L2-2200353.8297596.50.891.88.52.2636.72.27921103
    YE4-355M1-2220389.2298596.50.901.68.52.2700.32.861001520
    YE4-355M-2250432.6298596.50.911.68.52.2795.83.271001570
    YE4-355L1-2280484.5298596.50.911.68.52.2891.33.831001717
    YE4-355L-2315545.0298596.50.911.68.52.210034.031001730
    Synchronous Speed 1500 r/min
    YE4-80M-40.751.8143585.70.742.38.52.34.8--62--
    YE4-90S-41.12.6144087.20.752.38.52.37.0--67--
    YE4-90L-41.53.4144088.20.762.39.02.39.6--67--
    YE4-100L1-42.24.7145089.50.792.39.02.314.0--74--
    YE4-100L2-436.3145090.40.802.39.52.319.0--74--
    YE4-112M-448.3145091.10.802.29.52.325.5--77--
    YE4-132S-45.511.4147091.90.802.09.52.335.00.0677187
    YE4-132M-47.515.2147092.60.812.09.52.347.80.077198
    YE4-160M-41121.6147593.30.832.09.52.370.00.1373146
    YE4-160L-41528.9147593.90.842.09.52.395.50.1773158
    YE4-180M-418.535.1148094.20.852.09.52.3117.80.2376209
    YE4-180L-42241.6148094.50.852.09.52.3140.10.2576224
    YE4-200L-43056.5148594.90.852.09.02.3191.00.4576277
    YE4-225S-43769.5148595.20.852.09.02.3235.60.6478344
    YE4-225M-44584.3148595.40.852.09.02.3286.50.7478357
    YE4-250M-455101.5148595.70.862.09.02.3350.11.0579450
    YE4-280S-475136.4149096.00.872.08.52.3477.21.7580621
    YE4-280M-490161.7149096.10.882.08.52.3573.02.0880690
    YE4-315S-4110195.0148596.30.891.88.52.2700.33.3388875
    YE4-315M-4132233.8148596.40.891.88.52.2840.43.7188965
    YE4-315L1-4160279.6148596.60.901.88.52.210194.31881045
    YE4-315L-4185323.0148596.70.901.88.52.211785.13881149
    YE4-315L2-4200349.2148596.70.901.88.52.212735.13881149
    YE4-355M1-4220384.1149096.70.901.88.52.214019.25951607
    YE4-355M-4250436.5149096.70.901.88.52.215929.99951806
    YE4-355L2-4280488.8149096.70.901.88.52.2178310.64951820
    YE4-355L-4315549.9149096.70.901.88.52.2200610.91951890
    Synchronous Speed 1000 r/min
    YE4-90S-60.752.095082.70.702.17.52.17.2--67--
    YE4-90L-61.12.895084.50.702.17.52.110.5--67--
    YE4-100L-61.53.795585.90.712.17.52.114.3--74--
    YE4-112M-62.25.595587.40.712.07.52.121.0--77--
    YE4-132S-637.297088.60.712.07.52.128.70.046961
    YE4-132M1-649.497089.50.722.08.02.138.20.066976
    YE4-132M2-65.512.897090.50.722.08.02.152.50.076987
    YE4-160M-67.516.498091.30.762.08.02.171.60.1473140
    YE4-160L-61123.598092.30.772.08.52.1105.10.1973160
    YE4-180L-61530.798592.90.802.08.52.1143.30.3173187
    YE4-200L1-618.537.698593.40.802.08.52.3176.70.4473259
    YE4-200L2-62244.098593.70.812.08.52.1210.10.5573286
    YE4-225M-63059.099094.20.822.08.52.1286.50.8274314
    YE4-250M-63771.799094.50.832.08.32.1353.31.4376429
    YE4-280S-64586.999094.80.832.08.52.0429.82.2278539
    YE4-280M-655104.699095.10.842.08.52.0525.32.6878607
    YE4-315S-675143.299095.40.841.68.02.0716.33.9183816
    YE4-315M-690168.399095.60.851.68.02.0859.54.4283900
    YE4-315L1-6110205.299095.80.851.68.02.010515.5083999
    YE4-315L2-6132242.999096.00.861.68.02.012616.81831114
    YE4-355M1-6160293.899096.20.861.68.02.0152810.63851622
    YE4-355M-6185339.899096.20.861.68.02.0176711.33851660
    YE4-355M2-6200366.999096.30.861.68.02.0191012.15851722
    YE4-355L1-6220403.699096.30.861.68.02.0210114.25851810
    YE4-355L-6250457.799096.50.861.68.02.0238715.77851810
    Synchronous Speed 750 r/min
    YE4-132S-82.25.771084.50.701.87.52.028.20.056487
    YE4-132M-837.671085.90.701.87.82.038.20.076494
    YE4-160M1-849.872087.10.711.87.92.050.90.1268158
    YE4-160M2-85.513.172088.30.721.88.12.070.00.1668167
    YE4-160L-87.517.272089.30.741.87.82.095.50.1868176
    YE4-180L-81125.073090.40.741.87.92.0140.10.3670264
    YE4-200L-81533.373091.20.751.88.02.0191.00.5273261
    YE4-225S-818.540.973091.70.751.88.12.0235.60.7173277
    YE4-225M-82247.873092.10.761.88.32.0280.10.8873329
    YE4-250M-83063.973092.70.771.87.92.0382.01.1775400
    YE4-280S-83777.473593.10.781.87.92.0471.11.9876661
    YE4-280M-84593.973593.40.781.87.92.0573.02.3576674
    YE4-315S-855111.574093.70.801.68.22.0700.33.93821005
    YE4-315M-875151.274094.20.801.67.62.0955.05.38821105
    YE4-315L1-890178.874094.40.811.67.72.011466.40821165
    YE4-315L2-8110217.974094.70.811.67.72.014017.51821285
    YE4-355M1-8132260.974094.90.811.67.72.0168111.80891640
    YE4-355M2-8160311.774095.10.821.67.72.0203714.39891740
    YE4-355L3-8185360.574095.40.821.67.72.0235616.55891770
    YE4-355L-8200388.574095.40.811.67.72.0254718.71891810
    Synchronous Speed 600 r/min
    YE4-315S-104598.059093.00.751.56.22.0716.23.93821005
    YE4-315M-1055119.859093.00.751.55.82.0875.44.78821105
    YE4-315L1-1075159.959093.80.761.55.92.011946.40821165
    YE4-315L2-1090189.359093.80.771.56.02.014337.51821285
    YE4-355M-1090188.559093.30.771.456.02.014339.80891490
    YE4-355M1-10110227.559093.30.781.456.02.0143311.82891510
    YE4-355M2-10132272.159093.70.781.456.02.0175114.42891610
    YE4-355L-10160329.859093.70.781.456.02.0254717.88891710
