Simo YRKK7106-4 4000kW HV Electric Motor 50Hz 60Hz AC Asynchronous Motor

    Buy cheap Simo YRKK7106-4 4000kW HV Electric Motor 50Hz 60Hz AC Asynchronous Motor from wholesalers

    Buy cheap Simo YRKK7106-4 4000kW HV Electric Motor 50Hz 60Hz AC Asynchronous Motor from wholesalers
    • Buy cheap Simo YRKK7106-4 4000kW HV Electric Motor 50Hz 60Hz AC Asynchronous Motor from wholesalers

    Simo YRKK7106-4 4000kW HV Electric Motor 50Hz 60Hz AC Asynchronous Motor

    Ask Lasest Price
    Brand Name : Simo Motor
    Model Number : YRKK Series HV Three-phase Asynchronous Motor
    Certification : 3C, CE, GOST, CNAS, UL, QMS, EMS
    Payment Terms : T/T
    Delivery Time : 50-60 Working Days
    • Product Details
    • Company Profile

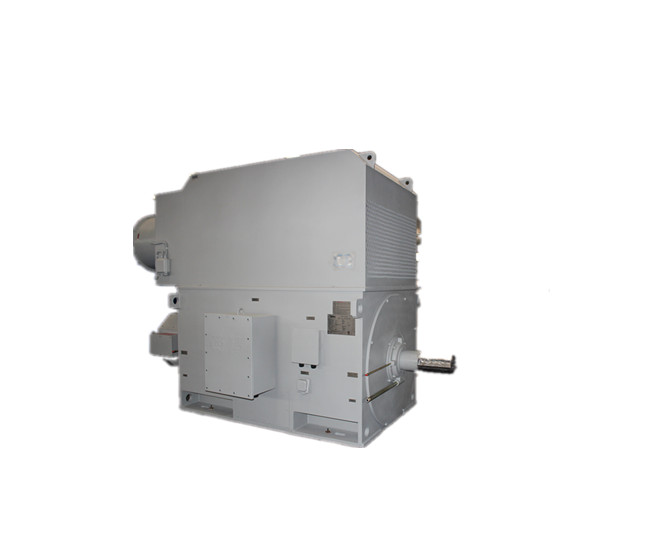

    Simo YRKK7106-4 4000kW HV Electric Motor 50Hz 60Hz AC Asynchronous Motor

    YRKK7106-4-4000kW-6kV-IP23-Class F-IM B3 HV Three-phase Asynchronous Motor


    Motor Parameters


    Type:YRKK7106-4-4000kW-6kV-IP23-Class F-IM B3 HV Three-phase Asynchronous Motor
    Rated Power4000Power Factor0.87
    Rated Current463.8Max. Torque/Rated Torque1.8
    Rated Speed1494Weight
    Efficiency95.5

    Technical Advantages

    YRKK7106-4-4000kW-6kV-IP23-Class F-IM B3 HV Three-phase Asynchronous Motor has characteristics of 4000 kW of rated power, 463.8 A of rated current, 1494 r/min of speed, 95.5% of efficiency, 0.87 Cos φof power factor. Its Max. torque/ rated torque is 1.8.


    This series of motor is winding rotor three-phase asynchronous motor, which can adjust starting torque and starting current through adjust rotor external connected additional resistance. Motor proper adopts box-type steel plate welding structure with light weight and good rigidity.


    Product Features

    This series of motor has advantages of compact structure, light weight, high efficiency, energy-saving, low noise and vibration, high reliability, long service life and convenient installation and maintenance, etc.


    Operation Conditions

    Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).


    Wide Application

    This series of motor is mainly applied in general machinery equipment or other similar machinery equipment, such as rolling mill, winch, blowers, water pump, mill, crusher, grinder applied in petroleum, chemical engineering, coal, power station, metallurgical, textile, medicine, food processing industries.


    Profile Display

    Our Advantages

    We are a developing and manufacturing enterprise specialized in large and medium, high and low voltage, AC and DC motors, synchronous motors, high efficiency motors and explosion-proof motors; a power system supplier intergrated motor design and manufacturing, mechanical processing, model manufacturing and automatic complete engineering. Our products mainly apply in electric power, coal, petroleum, mining exploring, metallurgy, railways, transportation, chemistry, agriculture, hydraulic power, navigation and high-tech areas, which is the motor supporting manufacturer specially designated by the Ministry of Railways.


    Service Expanded

    We proposed the service concept of "Customization" in accordance with the actual needs of customers in case of any special requirements. you can put forward special requirements and we will design an exclusive scheme as per your requirements. contact us of specific design and price.


    Available Types of YRKK


    TypeRated PowerRated CurrentRated SpeedEfficiencyPower Factor

    Max. Torque

    Rated Torque

    Mass
    kWAr/min%cosφkg
    YRKK7102-42500294.8149494.90.861.8
    YRKK7103-42800329.8149495.00.861.8
    YRKK7104-43150370.2149495.20.861.8
    YRKK7105-43550416.8149495.30.861.8
    YRKK7106-44000463.3149495.50.871.8
    YRKK8001-44000463.7149495.40.871.8
    YRKK8002-44500521.2149495.50.871.8
    YRKK8003-45000578.5149495.60.871.8
    YRKK8004-45600647.2149495.70.871.8
    YRKK7101-61800214.399595.10.851.8
    YRKK7102-62000237.699595.30.851.8
    YRKK7103-62240265.899595.40.851.8
    YRKK7104-62500296.499595.50.851.8
    YRKK7105-62800331.699595.60.851.8
    YRKK7106-63150372.699595.70.851.8
    YRKK8001-62800331.999595.50.851.8
    YRKK8002-63150373.099595.60.851.8
    YRKK8003-63550415.599595.60.861.8
    YRKK8004-64000467.799595.70.861.8
    YRKK8005-64500525.699595.80.861.8
    YRKK7101-81400169.274594.80.841.8
    YRKK7102-81600192.974595.00.841.8
    YRKK7103-81800216.674595.20.841.8
    YRKK7104-82000240.274595.40.841.8
    YRKK7105-82240268.474595.60.841.8
    YRKK8001-82000240.474595.30.841.8
    YRKK8002-82240269.074595.40.841.8
    YRKK8003-82500296.774595.40.851.8
    YRKK8004-82800331.974595.50.851.8
    YRKK8005-83150373.074595.60.851.8
    YRKK9001-83150373.474595.50.851.8
    YRKK9002-83550420.474595.60.851.8
    YRKK9003-84000473.274595.70.851.8
    YRKK9004-84500532.374595.70.851.8
    YRKK7101-101250154.759594.80.821.8
    YRKK7102-101400172.959595.00.821.8
    YRKK7103-101600197.259595.20.821.8
    YRKK7104-101800221.459595.40.821.8
    YRKK8001-101800221.659595.30.821.8
    YRKK8002-102000246.059595.40.821.8
    YRKK8003-102240275.259595.50.821.8
    YRKK8004-102500306.959595.60.821.8
    YRKK9001-102500307.259595.50.821.8
    YRKK9002-102800343.759595.60.821.8
    YRKK9003-103150386.359595.70.821.8
    YRKK9004-103550435.359595.70.821.8
    YRKK9005-104000490.059595.80.821.8
    YRKK10001-104000490.559595.70.821.8
    YRKK10002-104500551.859595.70.821.8
    YRKK10003-105000612.559595.80.821.8
    YRKK10004-105600686.059595.80.821.8
    YRKK10005-106300770.959595.90.821.8
    YRKK7101-12900111.949594.40.821.8
    YRKK7102-121000124.049594.60.821.8
    YRKK7103-121120138.649594.80.821.8
    YRKK7104-121250154.449595.00.821.8
    YRKK7105-121400172.649595.20.821.8
    YRKK8001-121250154.649594.90.821.8
    YRKK8002-121400172.949595.00.821.8
    YRKK8003-121600197.449595.10.821.8
    YRKK8004-121800221.949595.20.821.8
    YRKK8005-122000246.049595.40.821.8
    YRKK9001-122000246.349595.30.821.8
    YRKK9002-122240275.549595.40.821.8
    YRKK9003-122500307.249595.50.821.8
    YRKK9004-122800343.749595.60.821.8
    YRKK10001-122800344.149595.50.821.8
    YRKK10002-123150386.749595.60.821.8
    YRKK10003-123550435.849595.60.821.8
    YRKK10004-124000490.549595.70.821.8
    YRKK10005-124500551.849595.70.821.8
    YRKK7101-1650071.437193.60.721.8
    YRKK7102-1656079.837193.80.721.8
    YRKK7103-1663089.637194.00.721.8
    YRKK7104-16710100.737194.20.721.8
    YRKK7105-16800111.737194.40.731.8
    YRKK7106-16900125.437194.60.731.8
    YRKK8001-16800111.837194.30.731.8
    YRKK8002-16900125.737194.40.731.8
    YRKK8003-161000139.537194.50.731.8
    YRKK8004-161120156.137194.60.731.8
    YRKK8005-161250174.037194.70.731.8
    YRKK9001-161250174.237194.60.731.8
    YRKK9002-161400194.937194.70.731.8
    YRKK9003-161600222.537194.80.731.8
    YRKK9004-161800250.037194.90.731.8
    YRKK9005-162000277.537195.00.731.8
    YRKK10001-161800246.937194.80.741.8
    YRKK10002-162000274.037194.90.741.8
    YRKK10003-162240306.637195.00.741.8
    YRKK10004-162500341.837195.10.741.8
    YRKK10005-162800382.537195.20.741.8
    YRKK10006-163150429.837195.30.741.8

    Quality Simo YRKK7106-4 4000kW HV Electric Motor 50Hz 60Hz AC Asynchronous Motor for sale
