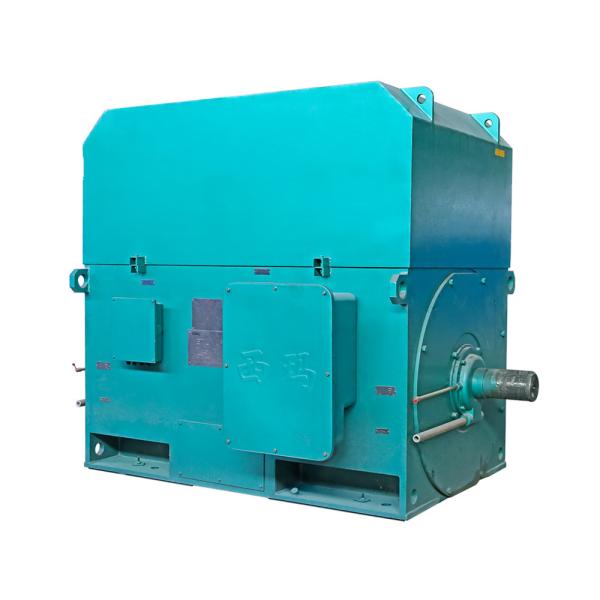

YKS 3551-2 220kW 92% High Efficiency High Voltage AC Motor IMB3 Mounting

Ask Lasest Price
Brand Name :	Simo Motor
Model Number :	YKK Series High Efficiency and HV Three-phase Asynchronous Motor
Certification :	3C, CE, GOST, CNAS, UL, QMS, EMS
Payment Terms :	T/T
Delivery Time :	50-60 Working Days

Add to Cart

Product Details
Company Profile

YKS 3551-2 220kW 92% High Efficiency High Voltage AC Motor IMB3 Mounting

YKS-3551-2-220kW-6kV-IP23-Class F-IM B3 High Efficiency and HV Three-phase Asynchronous Motor

Motor Parameters

Type:	YKS-3551-2-220kW-6kV-IP23-Class F-IM B3 High Efficiency and HV Three-phase Asynchronous Motor
Rated Power	220	Locked Torque/Rated Torque	0.6
Rated Current	26.8	Locked Current/Rated Current	7.0
Speed	2975	Max. Torque/Rated Torque	1.8
Efficiency	92.0	J (load)	16
Power Factor	0.86	Weight	1810

Technical Advantages

YKS-3551-2-220kW-6kV-IP23-Class F-IM B3 High Efficiency and HV Three-phase Asynchronous Motor Has characteristics of 220 kW of rated power, 26.8 A of rated current, 2975 r/min of speed, 92.0% of efficiency, 0.86 Cos φof power factor. Its locked torque/ rated torque is 0.6, locked current is 7.0, Max. torque/ rated torque is 1.8, J(load) is 16 and the weight is 1810 kg.

A main power supply terminal box is set for the high voltage motors below 2,000kW. For the motors above 2,000kW, in addition to the main terminal box, auxiliary terminal boxes (i.e. seen from driving end, there is one terminal box on the left and one on right respectively) are set opposite to the main terminal box; The star points of stator winding are led to auxiliary terminal boxes instead of being connected to the interior of motor, so that users can connect current transformer to protect the motors. We will not provide current transformer if there are no special instructions. When users specially request us to provide a current transformer, we shall negotiate mutually to select the current transformer with the same model to make them match with each other.

Product Features

This series of high and low voltage three-phase asynchronous motor has many advantages, such as compact structure, light weight, high efficiency, energy saving, low noise, low vibration, high reliability, long service life, easy installation and maintenance, etc.

Operation Conditions

Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).

Wide Application

This series of motor is applied in all kinds of different machineries, such as air ventilators, compressors, water pumps, crushers, cutting machines and other equipments, and it can be also regarded as prime motor among coal mine, machinery industry, power plant and other kinds of industries and mining enterprises.

Profile Display

Our Advantages

We are a developing and manufacturing enterprise specialized in large and medium, high and low voltage, AC and DC motors, synchronous motors, high efficiency motors and explosion-proof motors; a power system supplier intergrated motor design and manufacturing, mechanical processing, model manufacturing and automatic complete engineering. Our products mainly apply in electric power, coal, petroleum, mining exploring, metallurgy, railways, transportation, chemistry, agriculture, hydraulic power, navigation and high-tech areas, which is the motor supporting manufacturer specially designated by the Ministry of Railways.

Service Expanded

We proposed the service concept of "Customization" in accordance with the actual needs of customers in case of any special requirements. you can put forward special requirements and we will design an exclusive scheme as per your requirements. contact us of specific design and price.

Available Types of YKS

Type	Rated Power kW	Rated Current A	Speed r/min	Efficiency %	Power Factor Cosφ	Locked Torque	Locked Current	Max. Torque	Load moment of inertia	Weight Kg
						Rated Torque	Rated Current	Rated Torque		Weight Kg
						Rated Torque	Rated Current	Rated Torque		Y	YKS
Y,YKS4001-2	220	16.1	2975	91.9	0.86	0.6	7.0	1.8	16	2305	2705
Y,YKS4002-2	250	18.2	2975	92.1	0.86	0.6	7.0	1.8	18	2400	2800
Y,YKS4003-2	280	20.4	2975	92.3	0.86	0.6	7.0	1.8	20	2460	2860
Y,YKS4004-2	315	22.8	2975	92.7	0.86	0.6	7.0	1.8	22	2560	2960
Y,YKS4005-2	355	25.3	2975	93.1	0.87	0.6	7.0	1.8	24	2590	2990
Y,YKS4006-2	400	28.4	2975	93.4	0.87	0.6	7.0	1.8	27	2650	3050
Y,YKS4007-2	450	31.9	2975	93.6	0.87	0.6	7.0	1.8	30	2710	3110
Y,YKS4502-2	500	35.4	2970	93.7	0.87	0.6	7.0	1.8	54	3195	3545
Y,YKS4503-2	560	39.6	2970	93.9	0.87	0.6	7.0	1.8	58	3260	3610
Y,YKS4504-2	630	44.5	2970	94.0	0.87	0.6	7.0	1.8	63	3340	3690
Y,YKS4505-2	710	49.5	2970	94.1	0.88	0.6	7.0	1.8	75	3400	3750
Y,YKS4506-2	800	55.7	2970	94.3	0.88	0.6	7.0	1.8	80	3460	3810
Y,YKS5003-2	900	62.6	2980	94.4	0.88	0.6	7.0	1.8	88	4850	5350
Y,YKS5004-2	1000	69.4	2980	94.5	0.88	0.6	7.0	1.8	93	4980	5480
Y,YKS5005-2	1120	77.6	2980	94.7	0.88	0.6	7.0	1.8	98	5120	5620
Y,YKS5006-2	1250	85.4	2980	94.9	0.89	0.6	7.0	1.8	102	5230	5730
Y,YKS5007-2	1400	95.5	2980	95.1	0.89	0.6	7.0	1.8	105	5280	5780
Y,YKS5604-2	1600	109.0	2985	95.2	0.89	0.6	7.0	1.8	108	5750	6350
Y,YKS5605-2	1800	121.2	2985	95.3	0.90	0.6	7.0	1.8	112	6050	6650
Y,YKS5606-2	2000	134.3	2985	95.5	0.90	0.6	7.0	1.8	115	6250	6850
Y,YKS6303-2	2240	150.2	2980	95.7	0.90	0.6	7.0	1.8	120	8150	8950
Y,YKS6305-2	2500	167.6	2980	95.7	0.90	0.6	7.0	1.8	150	8800	8950
Y,YKS6307-2	2800	187.7	2980	95.7	0.90	0.6	7.0	1.8	170	9200	10000
Y,YKS6309-2	3150	210.9	2980	95.8	0.90	0.6	7.0	1.8	190	9600	10400
Y,YKS4001-4	220	16.3	1485	91.9	0.85	0.7	7.0	1.8	80	2105	2505
Y,YKS4002-4	250	18.4	1485	92.1	0.85	0.7	7.0	1.8	90	2155	2555
Y,YKS4003-4	280	20.6	1485	92.2	0.85	0.7	7.0	1.8	100	2230	2630
Y,YKS4004-4	315	23.1	1485	92.5	0.85	0.7	7.0	1.8	110	2285	2685
Y,YKS4005-4	355	25.7	1485	92.6	0.86	0.7	7.0	1.8	122	2380	2780
Y,YKS4006-4	400	28.9	1485	92.8	0.86	0.7	7.0	1.8	136	2500	2900
Y,YKS4007-4	450	32.4	1485	93.2	0.86	0.7	7.0	1.8	151	2590	2990
Y,YKS4502-4	500	36.0	1490	93.3	0.86	0.7	7.0	1.8	200	3250	3600
Y,YKS4503-4	560	40.2	1490	93.6	0.86	0.7	7.0	1.8	220	3300	3650
Y,YKS4504-4	630	45.1	1490	93.8	0.86	0.7	7.0	1.8	240	3350	3700
Y,YKS4505-4	710	49.9	1490	94.4	0.87	0.7	7.0	1.8	270	3430	3780
Y,YKS4506-4	800	56.1	1490	94.6	0.87	0.7	7.0	1.8	300	3510	3760
Y,YKS5003-4	900	62.4	1490	94.7	0.88	0.7	7.0	1.8	310	4070	4570
Y,YKS5004-4	1000	69.2	1490	94.8	0.88	0.7	7.0	1.8	320	4270	4770
Y,YKS5005-4	1120	77.4	1490	94.9	0.88	0.7	7.0	1.8	340	4370	4870
Y,YKS5006-4	1250	85.4	1490	95.0	0.89	0.7	7.0	1.8	370	4480	4980
Y,YKS5007-4	1400	95.3	1490	95.3	0.89	0.7	7.0	1.8	400	4620	5100
Y,YKS5604-4	1600	108.8	1490	95.4	0.89	0.7	7.0	1.8	560	6070	6670
Y,YKS5605-4	1800	122.3	1490	95.5	0.89	0.7	7.0	1.8	570	6180	6680
Y,YKS5606-4	2000	135.6	1490	95.7	0.89	0.7	7.0	1.8	580	6350	6850
Y,YKS6303-4	2240	151.7	1490	95.8	0.89	0.6	7.0	1.8	600	8050	8800
Y,YKS6305-4	2500	169.3	1490	95.8	0.89	0.6	7.0	1.8	660	8400	9150
Y,YKS6307-4	2800	189.6	1490	95.8	0.89	0.6	7.0	1.8	740	8800	9550
Y,YKS6309-4	3150	213.1	1490	95.9	0.89	0.6	7.0	1.8	840	9200	10000
Y,YKS4004-6	220	17.4	985	91.4	0.80	0.7	6.0	1.8	218	2290	2690
Y,YKS4005-6	250	19.7	985	91.6	0.80	0.7	6.0	1.8	245	2345	2745
Y,YKS4006-6	280	22.0	985	91.8	0.80	0.7	6.0	1.8	272	2420	2820
Y,YKS4007-6	315	24.1	985	92.1	0.82	0.7	6.0	1.8	302	2510	2910
Y,YKS4502-6	355	26.7	990	92.4	0.83	0.7	6.0	1.8	330	3090	3440
Y,YKS4503-6	400	30.0	990	92.6	0.83	0.7	6.0	1.8	360	3150	3500
Y,YKS4504-6	450	33.7	990	92.8	0.83	0.7	6.0	1.8	390	3210	3560
Y,YKS4505-6	500	37.3	990	93.2	0.83	0.7	6.0	1.8	450	3290	3640
Y,YKS4506-6	560	41.2	990	93.5	0.84	0.7	6.0	1.8	480	3370	3620
Y,YKS5003-6	630	46.2	990	93.8	0.84	0.7	6.0	1.8	490	4000	4610
Y,YKS5004-6	710	51.9	990	94.0	0.84	0.7	6.0	1.8	510	4160	4720
Y,YKS5005-6	800	58.4	990	94.2	0.84	0.7	6.0	1.8	530	4250	4820
Y,YKS5006-6	900	64.8	990	94.4	0.85	0.7	6.0	1.8	560	4350	4950
Y,YKS5007-6	1000	71.8	990	94.6	0.85	0.7	6.0	1.8	600	4460	5050
Y,YKS5603-6	1120	80.2	990	94.8	0.85	0.7	6.0	1.8	615	5650	6250
Y,YKS5604-6	1250	88.4	990	94.9	0.86	0.7	6.0	1.8	625	5850	6450
Y,YKS5605-6	1400	98.6	990	95.3	0.86	0.7	6.0	1.8	640	6250	6850
Y,YKS5606-6	1600	112.6	990	95.4	0.86	0.7	6.0	1.8	660	6500	7100
Y,YKS6304-6	1800	126.5	990	95.5	0.86	0.6	6.0	1.8	1100	8250	8950
Y,YKS6305-6	2000	140.5	990	95.6	0.86	0.6	6.0	1.8	1250	8700	9400
Y,YKS6307-6	2240	157.3	990	95.6	0.86	0.6	6.0	1.8	1400	9200	9900
Y,YKS6309-6	2500	175.6	990	95.6	0.86	0.6	6.0	1.8	1600	9900	3187
Y,YKS4502-8	220	18.3	745	91.1	0.76	0.7	6.0	1.8	240	2837	3192
Y,YKS4503-8	250	20.8	745	91.3	0.76	0.7	6.0	1.8	280	2842	3296
Y,YKS4504-8	280	23.2	745	91.6	0.76	0.7	6.0	1.8	320	2946	3453
Y,YKS4505-8	315	25.6	745	92.1	0.77	0.7	6.0	1.8	360	3103	3453
Y,YKS4506-8	355	28.8	745	92.4	0.77	0.7	6.0	1.8	400	3238	3588
Y,YKS5002-8	400	32.0	745	92.5	0.78	0.7	6.0	1.8	835	4010	4480
Y,YKS5003-8	450	35.9	745	92.7	0.78	0.7	6.0	1.8	930	4070	4540
Y,YKS5004-8	500	39.3	745	93.1	0.79	0.7	6.0	1.8	1010	4180	4670
Y,YKS5005-8	560	43.9	745	93.3	0.79	0.7	6.0	1.8	1025	4300	4840
Y,YKS5006-8	630	47.3	745	93.8	0.82	0.7	6.0	1.8	1050	4440	4950
Y,YKS5007-8	710	53.2	745	94.0	0.82	0.7	6.0	1.8	1080	4560	5050
Y,YKS5603-8	800	59.8	740	94.2	0.82	0.7	6.0	1.8	1560	5500	6100
Y,YKS5604-8	900	67.2	740	94.3	0.82	0.7	6.0	1.8	1640	5740	6340
Y,YKS5605-8	1000	73.6	740	94.5	0.83	0.7	6.0	1.8	1720	6000	6600
Y,YKS5606-8	1120	82.3	740	94.7	0.83	0.7	6.0	1.8	1800	6320	6830
Y,YKS6306-8	1250	91.7	745	94.8	0.83	0.7	6.0	1.8	2100	7350	8100
Y,YKS6307-8	1400	102.6	745	94.9	0.83	0.7	6.0	1.8	2350	7700	8450
Y,YKS6308-8	1600	117.3	745	94.9	0.83	0.7	6.0	1.8	2700	8050	8800
Y,YKS6309-8	1800	131.9	745	94.9	0.83	0.7	6.0	1.8	3100	8500	9300
Y,YKS4505-10	220	19.4	595	91.0	0.72	0.7	5.5	1.8	400	3245	3595
Y,YKS4506-10	250	21.7	595	91.2	0.73	0.7	5.5	1.8	450	3253	3603
Y,YKS5002-10	280	23.8	595	91.6	0.74	0.7	5.5	1.8	937	4000	4500
Y,YKS5003-10	315	26.7	595	91.9	0.74	0.7	5.5	1.8	1015	4080	4580
Y,YKS5004-10	355	29.7	595	92.1	0.75	0.7	5.5	1.8	1150	4210	4710
Y,YKS5005-10	400	33.4	595	92.3	0.75	0.7	5.5	1.8	1225	4280	4780
Y,YKS5006-10	450	36.5	595	92.5	0.77	0.7	5.5	1.8	1600	4350	4850
Y,YKS5007-10	500	40.4	595	92.7	0.77	0.7	5.5	1.8	1400	4480	5520
Y,YKS5602-10	560	44.6	595	92.9	0.78	0.7	6.0	1.8	1600	5200	5800
Y,YKS5603-10	630	50.1	595	93.1	0.78	0.7	6.0	1.8	1700	5380	5980
Y,YKS5604-10	710	56.3	595	93.3	0.78	0.7	6.0	1.8	1800	5590	6190
Y,YKS5605-10	800	61.6	595	93.8	0.80	0.7	6.0	1.8	1900	5810	6410
Y,YKS5606-10	900	69.1	595	94.0	0.80	0.7	6.0	1.8	2000	6100	6700
Y,YKS6305-10	1000	76.7	595	94.1	0.80	0.7	6.0	1.8	2600	7600	8200
Y,YKS6306-10	1120	85.8	595	94.2	0.80	0.7	6.0	1.8	2950	8000	8600
Y,YKS6307-10	1250	95.7	595	94.3	0.80	0.7	6.0	1.8	3300	8400	9000
Y,YKS6308-10	1400	107.1	595	94.3	0.80	0.7	6.0	1.8	3700	8850	9500
Y,YKS6309-10	1600	122.5	595	94.3	0.80	0.7	6.0	1.8	4200	9250	9900
Y,YKS5003-12	220	19.4	495	90.9	0.72	0.7	5.5	1.8	1350	4100	4600
Y,YKS5004-12	250	22.0	495	91.1	0.72	0.7	5.5	1.8	1722	4160	4660
Y,YKS5005-12	280	24.6	495	91.3	0.72	0.7	5.5	1.8	1870	4200	4700
Y,YKS5006-12	315	27.2	495	91.6	0.73	0.7	5.5	1.8	1920	4330	4830
Y,YKS5007-12	355	30.6	495	91.8	0.73	0.7	5.5	1.8	2020	4450	4950
Y,YKS5602-12	400	34.4	495	92.0	0.73	0.7	6.0	1.8	2130	5250	5850
Y,YKS5603-12	450	38.6	495	92.2	0.73	0.7	6.0	1.8	2170	5380	5980
Y,YKS5604-12	500	42.8	495	92.5	0.73	0.7	6.0	1.8	2210	5560	6160
Y,YKS5605-12	560	47.0	495	92.9	0.74	0.7	6.0	1.8	2250	5800	6400
Y,YKS5606-12	630	52.8	495	93.1	0.74	0.7	6.0	1.8	2280	6020	6620
Y,YKS6305-12	710	59.4	495	93.3	0.74	0.7	6.0	1.8	2800	7500	8100
Y,YKS6306-12	800	66.5	495	93.8	0.74	0.7	6.0	1.8	3000	7950	8550
Y,YKS6307-12	900	74.9	495	93.8	0.74	0.7	6.0	1.8	3400	8400	9050
Y,YKS6308-12	1000	83.2	495	93.8	0.74	0.7	6.0	1.8	3800	8800	9450
Y,YKS6309-12	1120	93.2	495	93.8	0.74	0.7	6.0	1.8	4300	9250	9950
